Welded Wire Mesh
|
Introduction
|

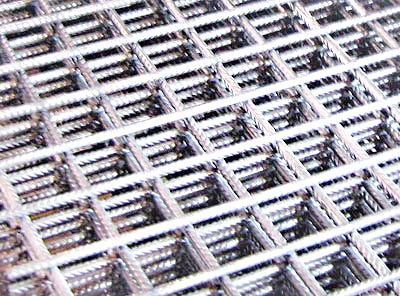

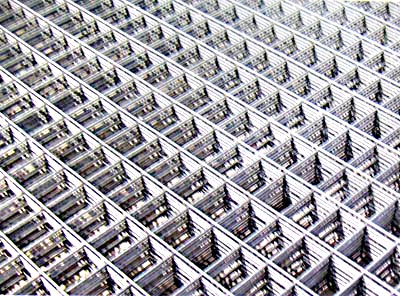

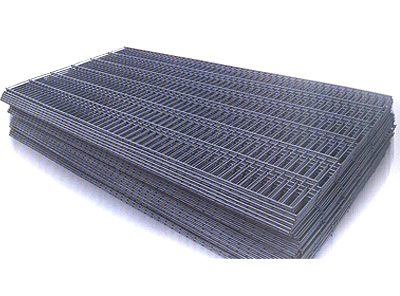

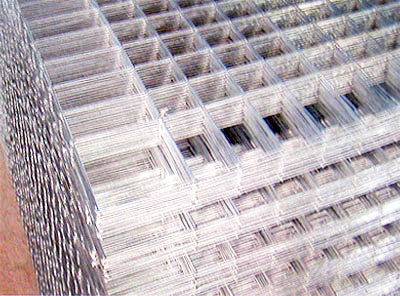

Welded wire mesh is made of high quality low carbon steel iron wire. It has smooth surface, well-proportioned mesh size, strong structure, bright luster. After galvanized coating or PVC coating, welded wire mesh has good properties of anti-corrosion and anti-rust. Welded wire mesh is widely used as protection fence in industry, agriculture, building construction, transportation, mining, cultivation. Based on the different surface treatment, it has Galvanized welded wire mesh and PVC coated welded wire mesh.
|
Specification
|
1. Specification for Galvanized welded wire mesh
Galvanized Welded Wire Mesh |
Mesh Size |
Wire Diameter |
Width |
(inch x inch) |
(mm x mm) |
(BWG) |
(m) |
1/4″x1/4″ |
6.4x6.4 |
BWG26,25,24,23,22,21 |
0.5-2.4 |
3/8″x3/8″ |
9.5x9.5 |
BWG26,25,24,23,22,21,20,19 |
0.5-2.4 |
1/2″x1/2″ |
12.7x12.7 |
BWG25,24,23,22,21,20,19,18,17,16 |
0.5-2.4 |
5/8″x5/8″ |
16x16 |
BWG25,24,23,22,21,20,19,18,17,16 |
0.5-2.4 |
3/4″x3/4″ |
19x19 |
BWG25,24,23,22,21,20,19,18,17,16 |
0.5-2.4 |
1/2″x1″ |
12.7x25.4 |
BWG22,21,20,19,18,17,16,15,14 |
0.5-2.4 |
1″x1″ |
25.4x25.4 |
BWG22,21,20,19,18,17,16,15,14 |
0.5-2.4 |
1-1/4″x1-1/4″ |
32x32 |
BWG20,19,18,17,16,15,14,13,12 |
0.5-2.4 |
1-1/2″x1-1/2″ |
38x38 |
BWG20,19,18,17,16,15,14,13,12 |
0.5-2.4 |
1″x2″ |
25.4x50.8 |
BWG19,18,17,16,15,14,13,12 |
0.5-2.4 |
2″x2″ |
50.8x50.8 |
BWG18,17,16,15,14,13,12 |
0.5-2.4 |
2″x3″ |
50.8x76.2 |
BWG16,15,14,13,12 |
0.5-2.4 |
3″x3″ |
76.2x76.2 |
BWG16,15,14,13,12 |
0.5-2.4 |
2″x4″ |
50.8x101.6 |
BWG16,15,14,13,12 |
0.5-2.4 |
4″x4″ |
101.6x101.6 |
BWG16,15,14,13,12 |
0.5-2.4 |
Assortment available for galvanized welded wire mesh, based on surface treatment : Hot-dipped galvanized after welding; Hot-dipped galvanized before welding;Electro galvanized after welding;Electro galvanized before welding; |
2. Specification for PVC coated welded wire mesh
PVC Coated Welded Wire Mesh |
Mesh Size |
Wire Diameter |
Width |
(inch x inch) |
(mm x mm) |
Core diameter/outside diameter(mm) |
(m) |
1/4″x1/4″ |
6.4x6.4 |
0.35/0.7-0.5/0.9 |
0.5-2.4 |
3/8″x3/8″ |
9.5x9.5 |
0.35/0.7-0.8/1.2 |
0.5-2.4 |
1/2″x1/2″ |
12.7x12.7 |
0.4/0.8-1.2/1.6 |
0.5-2.4 |
5/8″x5/8″ |
16x16 |
0.4/0.8-1.2/1.6 |
0.5-2.4 |
3/4″x3/4″ |
19x19 |
0.4/0.8-1.2/1.6 |
0.5-2.4 |
1/2″x1″ |
12.7x25.4 |
0.4/0.8-1.2/1.6 |
0.5-2.4 |
1″x1″ |
25.4x25.4 |
0.5/0.9-1.6/2.0 |
0.5-2.4 |
1-1/4″x1-1/4″ |
32x32 |
0.5/0.9-1.6/2.0 |
0.5-2.4 |
1-1/2″x1-1/2″ |
38x38 |
0.5/0.9-1.6/2.0 |
0.5-2.4 |
1″x2″ |
25.4x50.8 |
0.6/1.0-2.0/2.6 |
0.5-2.4 |
2″x2″ |
50.8x50.8 |
0.8/1.2-2.0/2.6 |
0.5-2.4 |
|

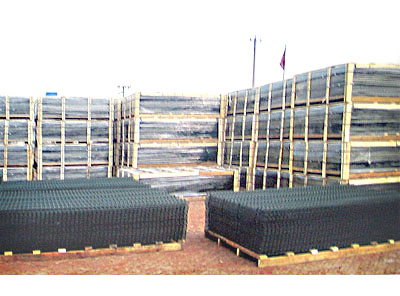

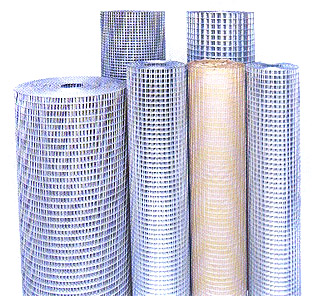

Packing
|
Each roll is packed with water-proofing paper or plastic film, then packed into carton or pallet.
|
|
