Hexagonal Wire Mesh－CHANGYI INTERNATIONAL CORPORATION

Hexagonal wire mesh is with good properties of firm structure, anti-corrosion.
It is wildly used in building construction, as reinforcement in cement concrete, plastering. It is also used as fence for poultry farm, bird cage, tennis court, and so on.

Specification

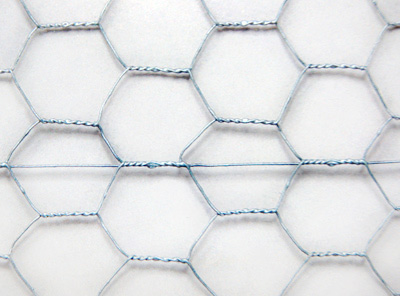

1. Specification for Galvanized hexagonal wire mesh

Galvanized Hexagonal Wire Mesh
Mesh Size			Wire Diameter										Width
(inch)	(mm)		Wire Diameter										(m)
3/8″		10	BWG	27	26	25	24	23					0.3-1.2
3/8″		10	mm	0.41	0.46	0.51	0.56	0.64					0.3-1.2
1/2″		13	BWG	27	26	25	24	23	22	21	20		0.3-2.0
1/2″		13	mm	0.41	0.46	0.51	0.56	0.64	0.71	0.81	0.9		0.3-2.0
5/8″		16	BWG	27	26	25	24	23	22	21	20	19	0.3-1.2
5/8″		16	mm	0.41	0.46	0.51	0.56	0.61	0.71	0.81	0.9	1.07	0.3-1.2
3/4″		19	BWG	25	24	23	22	21	20	19	18		0.3-2.0
3/4″		19	mm	0.51	0.56	0.61	0.71	0.81	0.9	1.07	1.25		0.3-2.0
1″		25	BWG	25	24	23	22	21	20	19	18		0.3-2.0
1″		25	mm	0.51	0.56	0.61	0.71	0.81	0.9	1.07	1.25		0.3-2.0
1-1/4″		31	BWG	24	23	22	21	20	19	18			0.3-2.0
1-1/4″		31	mm	0.56	0.61	0.71	0.81	0.9	1.07	1.25			0.3-2.0
1-1/2″		40	BWG	24	23	22	21	20	19	18	17		0.3-2.0
1-1/2″		40	mm	0.56	0.61	0.71	0.81	0.9	1.07	1.25	1.47		0.3-2.0
2″		50	BWG	24	23	22	21	20	19	18	17	16	0.3-2.0
2″		50	mm	0.56	0.61	0.71	0.81	0.9	1.07	1.25	1.47	1.65	0.3-2.0
3″		75	BWG	20	19	18	17	16	15	14	13	12	0.3-4.0
3″		75	mm	0.9	1.07	1.25	1.47	1.65	1.83	2.1	2.4	2.77	0.3-4.0
4″		100	BWG	17	16	15	14	13	12	11	10	9	0.5-4.0
4″		100	mm	1.47	1.65	1.83	2.1	2.4	2.77	3.05	3.4	3.76	0.5-4.0
1. Assortment available for galvanized hexagonal wire mesh, based on surface treatment : Hot-dipped galvanized after weaving; Hot-dipped galvanized before weaving;Electro galvanized after weaving;Electro galvanized before weaving; 2. Based on weaving twist type:Hexagonal wire mesh in normal twist; Hexagonal wire mesh in reverse twist.

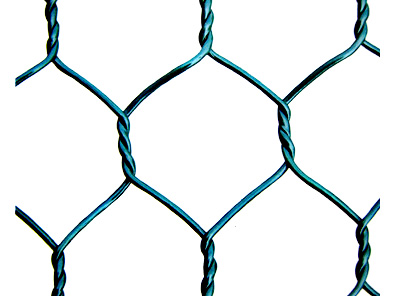

2. Specification for PVC coated hexagonal wire mesh

PVC Coated Hexagonal Wire Mesh
Mesh Size		Wire Diameter	Width
(inch)	(mm)	Core diameter/outside diameter (mm)	(m)
1/2″	13	0.4/0.8-0.8/1.2	0.3-2.0
5/8″	16	0.4/0.8-0.8/1.2	0.3-1.2
3/4″	19	0.4/0.8-0.8/1.2	0.3-2.0
1″	25	0.5/0.9-1.0/1.4	0.3-2.0
1-1/4″	31	0.6/1.0-1.2/1.6	0.3-2.0
1-1/2″	40	0.6/1.0-1.2/1.6	0.3-2.0
2″	51	0.6/1.0-1.2/1.6	0.3-2.0
3″	75	1.2/2.0-3.0/4.0	0.3-4.0
4″	100	1.2/2.0-3.0/4.0	0.5-4.0

Packing

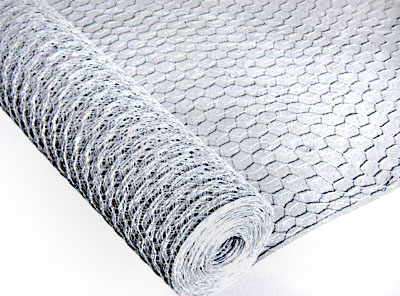

Each roll is packed with water-proofing paper or plastic film, then packed into carton or pallet.
