Gabion Box/ Gabion Basket－CHANGYI INTERNATIONAL CORPORATION

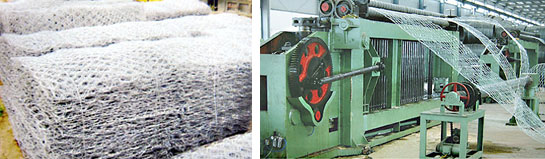

Gabion box (gabion basket) is made of heavy hexagonal wire mesh.
Normally, the wire for weaving heavy hexagonal mesh, is with heavy Zinc coating, or GALFAN coating, or heavy Zinc+PVC coating.

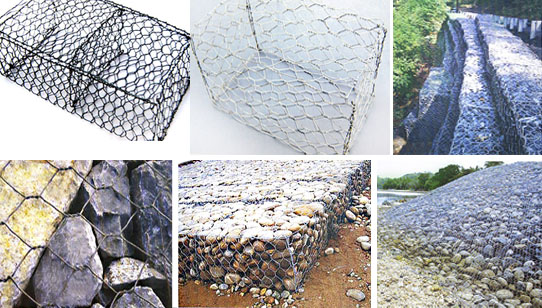

Gabion box is used for: control and guide water of flood, spillway dam or diversion dam, preventing of rock fall, preventing soil erosion, bridge protection, strengthening structure of soil, protection engineering of seaside area.

Specification

1. Specification for Gabion mesh (heavy hexagonal wire mesh)

Heavy Hexagonal Mesh
Mesh Size (mm)	Galvanized Coating	PVC Coating	Roll Width (m)
Mesh Size (mm)	Wire diameter (mm)	Core diameter/outside diameter (mm)	Roll Width (m)
60x80	2.0-2.8	2.0/3.0-2.5/3.5	4.0
80x100	2.0-3.2	2.0/3.0-3.5/4.5	4.0
80x120	2.0-3.2	2.0/3.0-3.5/4.5	4.0
100x120	2.0-3.4	2.0/3.0-3.5/4.5	4.0
100x150	2.0-3.4	2.0/3.0-3.5/4.5	4.0
120x150	2.0-4.0	2.0/3.0-3.5/4.5	4.0
160x180	2.0-4.0	2.0/3.0-3.5/4.5	4.0

2. Specification for Gabion box

Gabion Box(Gabion Basket)
Length (m)	Width (m)	Height (m)	Diaphragm (unit)	Volume(m3)	The Tolerance(%)
2.0	1.0	0.3	1	0.60	For Length:+/-3%; For Width: +/-5%; For Height: +/-5%;
3.0	1.0	0.3	2	0.90
4.0	1.0	0.3	3	1.20
2.0	1.0	0.5	1	1.00
3.0	1.0	0.5	2	1.50
4.0	1.0	0.5	3	2.00
1.0	1.0	0.5	0	1.00
1.5	1.0	1.0	0	1.50
2.0	1.0	1.0	1	2.00
3.0	1.0	1.0	2	3.00
4.0	1.0	1.0	3	4.00

Packing
