Knotted Field Fence－CHANGYI INTERNATIONAL CORPORATION

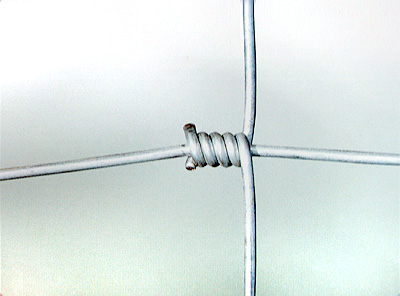

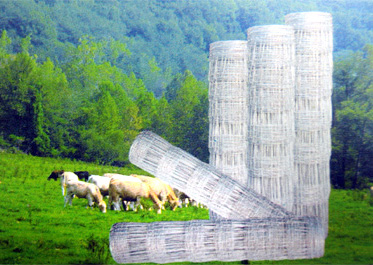

Cattle fence, also name knotted wire field fence, or grassland fence.
This mesh is made of hot-dipped galvanized wire, having good properties of high strength, firm structure. Even part of the mesh is been cut off or broken, the rest mesh will not be loosen or deformed.

Specification

Cattle Fence (Hinge Joint Knot Field Fence)
Diameter of top wire and bottom wire: 2.5mm; diameter of the rest wire: 2.0mm
Quantity of mesh cell, from top to bottom along height direction (pc)	Height of each mesh cell (inch)	Height of roll (m)	Length of roll (m)	Weight per roll (kg/roll)	Roll diameter (cm)
6	4+4.5+5+5.5+6+7	0.81	50	19.3	28
7	3.5+3.5+4+4.5+5+5.5+6	0.81	50	20.8	28
7	3.5+4+4.5+5+5.5+6+7	0.89	50	21.6	28
7	4+4.5+5+5.5+6+7+8	1.02	50	22.6	28
7	4.5+5+5.5+6+7+8+9	1.14	50	23.6	28
8	3.5+3.5+4+4.5+5+5.5+6+7	0.99	50	23.9	28
8	4+4.5+5+5.5+6+7+8+9	1.24	50	26.0	28
9	3.5+3.5+4+4.5+5+5.5+6+7+8	1.19	50	27.3	28
9	3.5+4+4.5+5+5.5+6+7+8+9	1.32	50	28.4	28
10	3.5+3.5+4+4.5+5+5.5+6+7+8+9	1.42	50	30.8	28
16	4x13+6x2+8x2	2.01	50	47.0	28

Packing

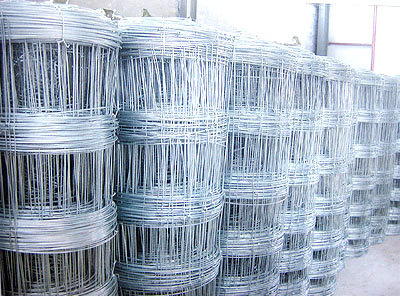

Each roll is packed with water-proofing paper or plastic film, then packed into carton or pallet.
