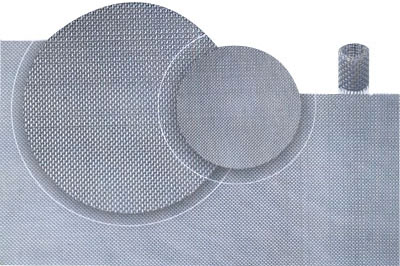

Stainless steel wire mesh is acid-resisting, alkali-resisting, heat-resisting, wear-resisting. Having the above excellent characteristics, stainless steel wire mesh is widely used in filtrating, sieving, pharmaceutical industry, chemical industry, food industry, etc.
The raw material of stainless steel, has the following grade: 304, 304L, 316, 316L, 310, 430, etc.
The weaving structure of stainless steel wire mesh has two type: plain weaving and twill weaving.

Specification

Stainless Steel Wire Mesh (plain weaving)
Mesh size (count/inch)	Wire diameter		Width of opening		Open area (%)	Area weight (pounds/100 square feet
Mesh size (count/inch)	(inch)	(mm)	(inch)	(mm)	Open area (%)	Stainless steel	Pure copper	80-20 brass
1x1	0.08	2.03	0.92	23.37	84.6	41.1	46.6	45.4
2x2	0.063	1.6	0.437	11.1	76.4	51.2	58	56.6
3x3	0.054	1.37	0.279	7.09	70.1	56.7	64.3	62.7
4x4	0.063	1.6	0.187	4.75	56	104.8	118.8	115.8
4x4	0.047	1.19	0.203	5.16	65.9	57.6	65.3	63.7
5x5	0.041	1.04	0.159	4.04	63.2	54.9	62.2	60.7
6x6	0.035	0.89	0.132	3.35	62.7	48.1	54.5	53.2
8x8	0.028	0.71	0.097	2.46	60.2	41.1	46.6	45.4
10x10	0.025	0.64	0.075	1.91	56.3	41.2	46.7	45.5
10x10	0.020	0.51	0.08	2.03	64	26.1	29.6	28.8
12x12	0.023	0.584	0.06	1.52	51.8	42.2	47.8	46.6
12x12	0.020	0.508	0.063	1.60	57.2	31.6	35.8	34.9
14x14	0.023	0.584	0.048	1.22	45.2	49.8	56.4	55
14x14	0.020	0.508	0.051	1.30	51	37.2	42.2	41.1
16x16	0.018	0.457	0.0445	1.13	50.7	34.5	39.1	38.1
18x18	0.017	0.432	0.0386	0.98	48.3	34.8	39.4	38.5
20x20	0.020	0.508	0.0300	0.76	36	55.2	62.6	61
20x20	0.016	0.406	0.0340	0.86	46.2	34.4	39	38
24x24	0.014	0.356	0.0277	0.70	44.2	31.8	36	35.1
30x30	0.013	0.330	0.0203	0.52	37.1	34.8	39.4	38.5
30x30	0.012	0.305	0.0213	0.54	40.8	29.4	33.3	32.5
30x30	0.009	0.229	0.0243	0.62	53.1	16.1	18.3	17.8
35x35	0.011	0.279	0.0176	0.45	37.9	29	32.9	32
40x40	0.010	0.254	0.015	0.38	36	27.6	31.3	30.5
50x50	0.009	0.229	0.011	0.28	30.3	28.4	32.2	31.4
50x50	0.008	0.203	0.012	0.31	36	22.1	25.1	24.4
60x60	0.0075	0.191	0.092	0.23	30.5	23.7	26.9	26.2
60x60	0.007	0.178	0.097	0.25	33.9	20.4	23.1	22.5
70x70	0.0065	0.165	0.0078	0.20	29.8	20.8	23.6	23
80x80	0.0065	0.165	0.0060	0.15	23	23.2	26.3	25.6
80x80	0.0055	0.140	0.0070	0.18	31.4	16.9	19.2	18.7
90x90	0.005	0.127	0.0061	0.16	30.1	15.8	17.9	17.5
100x100	0.0045	0.114	0.0055	0.14	30.3	14.2	16.1	15.7
100x100	0.004	0.102	0.0060	0.15	36	11.0	12.5	12.2
100x100	0.0035	0.089	0.0065	0.17	42.3	8.3	9.4	9.2
110x110	0.0040	0.102	0.0051	0.1295	30.7	12.4	14.1	13.7
120x120	0.0037	0.094	0.0046	0.1168	30.7	11.6	13.1	12.8
150x150	0.0026	0.066	0.0041	0.1041	37.4	7.1	8	7.8
160x160	0.0025	0.0635	0.0038	0.0965	36.4	5.94
180x180	0.0023	0.0584	0.0033	0.0838	34.7	6.7	7.6	7.4
200x200	0.0021	0.0533	0.0029	0.0737	33.6	6.2	7.0	6.9
250x250	0.0016	0.0406	0.0024	0.061	36	4.4	5.0	4.9
270x270	0.0016	0.0406	0.0021	0.0533	32.2	4.7	5.3
300x300	0.0015	0.0381	0.0018	0.0457	29.7	3.04
325x325	0.0014	0.0356	0.0017	0.0432	30	4.4	5.0
400x400	0.0010	0.0254	0.0015	0.037	36	3.3	3.7
500x500	0.0010	0.0254	0.0010	0.0254	25	3.8	4.3
635x635	0.0008	0.0203	0.0008	0.0203	25	2.63

Packing
