Material available: aluminum plate, thin low carbon steel plate, stainless steel plate, Al-Mg alloy plate, copper plate, nickel plate.

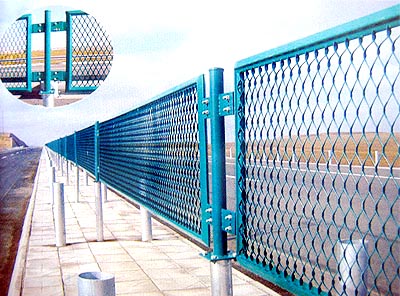

Application: expanded metal mesh is widely used as fence for road, railway, civil building, water conservancy building; protection for all kinds of machines, electrical equipment, and aquatic cultivating.

Specification

Expanded Metal Mesh

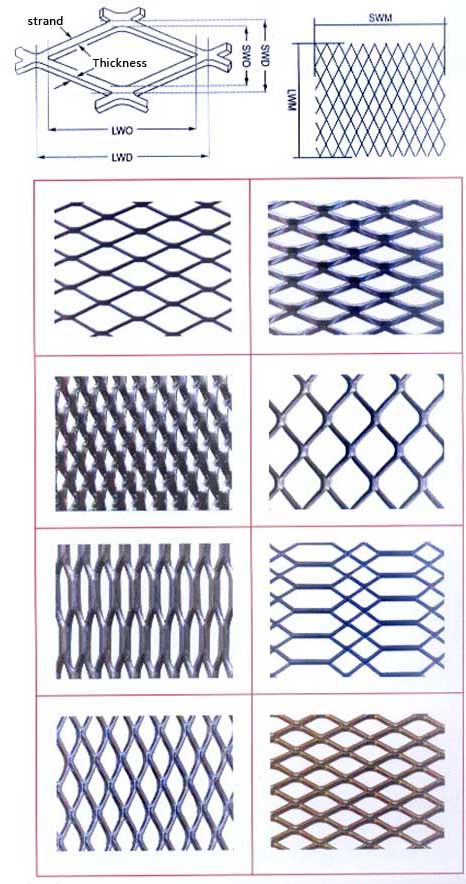

Thickness (mm)	Dimension of mesh (mm)			Area weight (kg/m2)
Thickness (mm)	SWD	LWD	Strand width	Area weight (kg/m2)
1.5	12.7	25.4	1.2	2
1.7	12.7	25.4	1.5	2.9
1.5	16	40	1.2	1.6
1.5	12.7	30	1.2	2
1.7	12.7	30	1.5	2.9
2.5	23.4	50.8	1.5	2.4
3.0	23.4	50.8	2.0	3.7
3.5	25	60	2.0	4.3
3.5	25	60	3.0	6.1
3.0	34.2	76	2.5	3.2
3.0	34.2	76	3.0	4
3.5	40	80	3.5	4.6
3.5	40	80	4.0	5.3
4.0	40	100	3.0	4.5
7.75	55	100	7.0	14.9
4.75	55	100	4.0	5.2
4.75	33.78	135.38	3.5	7.3
5.75	33.78	135.38	5.0	12.9
4.75	75	150	3.0	2.8
5.75	75	150	5.0	5.7
3.75	100	200	2.5	1.4
4.75	100	200	3.0	2.1

Packing
